Device
런타임 > 런타임 유형 변경 > 하드웨어 가속기 > GPU로 설정하고 저장
Setup
import torch
import os
print("PyTorch has version {}".format(torch.__version__))
PyTorch has version 1.13.1+cu116
# Install torch geometric
if 'IS_GRADESCOPE_ENV' not in os.environ:
!pip install torch-scatter -f https://pytorch-geometric.com/whl/torch-1.13.1+cu116.html
!pip install torch-sparse -f https://pytorch-geometric.com/whl/torch-1.13.1+cu116.html
!pip install torch-geometric
!pip install ogb
from torch_geometric.datasets import TUDataset
if 'IS_GRADESCOPE_ENV' not in os.environ:
root = './enzymes'
name = 'ENZYMES'
# The ENZYMES dataset
pyg_dataset= TUDataset(root, name)
# You will find that there are 600 graphs in this dataset
print(pyg_dataset)
Downloading https://www.chrsmrrs.com/graphkerneldatasets/ENZYMES.zip
Extracting enzymes/ENZYMES/ENZYMES.zip
Processing...
ENZYMES(600)
Done!
get_summary() 메소드를 이용하여 간단한 정보를 볼 수 있다.
print(pyg_dataset.get_summary())
TUDataset (#graphs=600):
+------------+----------+----------+
| | #nodes | #edges |
|------------+----------+----------|
| mean | 32.6 | 124.3 |
| std | 15.3 | 51 |
| min | 2 | 2 |
| quantile25 | 22 | 86 |
| median | 32 | 120 |
| quantile75 | 41 | 164 |
| max | 126 | 298 |
+------------+----------+----------+
Question 1: What is the number of classes and number of features in the ENZYMES dataset?
def get_num_classes(pyg_dataset):
# TODO: Implement a function that takes a PyG dataset object
# and returns the number of classes for that dataset.
num_classes = 0
############# Your code here ############
## (~1 line of code)
## Note
## 1. Colab autocomplete functionality might be useful.
num_classes = pyg_dataset.num_classes
#########################################
return num_classes
def get_num_features(pyg_dataset):
# TODO: Implement a function that takes a PyG dataset object
# and returns the number of features for that dataset.
num_features = 0
############# Your code here ############
## (~1 line of code)
## Note
## 1. Colab autocomplete functionality might be useful.
num_features = pyg_dataset.num_features
#########################################
return num_features
if 'IS_GRADESCOPE_ENV' not in os.environ:
num_classes = get_num_classes(pyg_dataset)
num_features = get_num_features(pyg_dataset)
print("{} dataset has {} classes".format(name, num_classes))
print("{} dataset has {} features".format(name, num_features))
ENZYMES dataset has 6 classes
ENZYMES dataset has 3 features
※ PyG dataset은 여러가지 유용한 멤버변수를 갖는다.
- num_classes, num_features
- num_edge_attributes, num_edge_features, num_edge_labels
- num_node_attributes, num_node_features, num_node_labels
Question 2: What is the label of the graph with index 100 in the ENZYMES dataset?
아래 torch_geometric 도큐먼트를 통해 기본적인 파라미터가 있다는 것을 알 수 있다.
- x
- edge_index
- edge_attr
- y
- pos
- **kwargs
def get_graph_class(pyg_dataset, idx):
# TODO: Implement a function that takes a PyG dataset object,
# an index of a graph within the dataset, and returns the class/label
# of the graph (as an integer).
label = -1
############# Your code here ############
## (~1 line of code)
label = pyg_dataset[idx].y
#########################################
return label
# Here pyg_dataset is a dataset for graph classification
if 'IS_GRADESCOPE_ENV' not in os.environ:
graph_0 = pyg_dataset[0]
print(graph_0)
idx = 100
label = get_graph_class(pyg_dataset, idx)
print('Graph with index {} has label {}'.format(idx, label))
Data(edge_index=[2, 168], x=[37, 3], y=[1])
Graph with index 100 has label tensor([4])
Question 3. How many edges does the graph with index 200 have?
그래프가 방향그래프(directed graph)라면 위에 언급한 대로 num_edges를 호출하면 된다.
하지만 무뱡향그래프라면(undirected graph) 중복되는 edge를 세지 않아야 하기 때문에 $2$로 나누어야한다.
is_directed 를 통해 edge 속성을 파악하여 edge의 개수를 계산한다.
def get_graph_num_edges(pyg_dataset, idx):
# TODO: Implement a function that takes a PyG dataset object,
# the index of a graph in the dataset, and returns the number of
# edges in the graph (as an integer). You should not count an edge
# twice if the graph is undirected. For example, in an undirected
# graph G, if two nodes v and u are connected by an edge, this edge
# should only be counted once.
num_edges = 0
############# Your code here ############
## Note:
## 1. You can't return the data.num_edges directly
## 2. We assume the graph is undirected
## 3. Look at the PyG dataset built in functions
## (~4 lines of code)
if pyg_dataset[idx].is_directed():
num_edges = pyg_dataset[idx].num_edges
else:
num_edges = pyg_dataset[idx].num_edges // 2
#########################################
return num_edges
if 'IS_GRADESCOPE_ENV' not in os.environ:
idx = 200
num_edges = get_graph_num_edges(pyg_dataset, idx)
print('Graph with index {} has {} edges'.format(idx, num_edges))
Graph with index 200 has 53 edges
2) Open Graph Benchmark (OGB)
Dataset and Data
import torch_geometric.transforms as T
from ogb.nodeproppred import PygNodePropPredDataset
if 'IS_GRADESCOPE_ENV' not in os.environ:
dataset_name = 'ogbn-arxiv'
# Load the dataset and transform it to sparse tensor
dataset = PygNodePropPredDataset(name=dataset_name,
transform=T.ToSparseTensor())
print('The {} dataset has {} graph'.format(dataset_name, len(dataset)))
# Extract the graph
data = dataset[0]
print(data)
Downloading http://snap.stanford.edu/ogb/data/nodeproppred/arxiv.zip
Downloaded 0.08 GB: 100%|██████████| 81/81 [00:07<00:00, 10.64it/s]
Extracting dataset/arxiv.zip
Processing...
Loading necessary files...
This might take a while.
Processing graphs...
100%|██████████| 1/1 [00:00<00:00, 1778.75it/s]
Converting graphs into PyG objects...
100%|██████████| 1/1 [00:00<00:00, 4871.43it/s]Saving...
Done!
The ogbn-arxiv dataset has 1 graph
Data(num_nodes=169343, x=[169343, 128], node_year=[169343, 1], y=[169343, 1], adj_t=[169343, 169343, nnz=1166243])
Question 4. How many features are in the obgn-arxiv graph?
def graph_num_features(data):
# TODO: Implement a function that takes a PyG data object,
# and returns the number of features in the graph (as an integer).
num_features = 0
############# Your code here ############
## (~1 line of code)
num_features = data.num_features
#########################################
return num_features
if 'IS_GRADESCOPE_ENV' not in os.environ:
num_features = graph_num_features(data)
print('The graph has {} features'.format(num_features))
The graph has 128 features
3) GNN: Node Property Prediction
Setup
import torch
import pandas as pd
import torch.nn.functional as F
print(torch.__version__)
# The PyG built-in GCNConv
from torch_geometric.nn import GCNConv
import torch_geometric.transforms as T
from ogb.nodeproppred import PygNodePropPredDataset, Evaluator
Load and Preprocess the Dataset
if 'IS_GRADESCOPE_ENV' not in os.environ:
dataset_name = 'ogbn-arxiv'
dataset = PygNodePropPredDataset(name=dataset_name,
transform=T.ToSparseTensor())
data = dataset[0]
# Make the adjacency matrix to symmetric
data.adj_t = data.adj_t.to_symmetric()
device = 'cuda' if torch.cuda.is_available() else 'cpu'
# If you use GPU, the device should be cuda
print('Device: {}'.format(device))
data = data.to(device)
split_idx = dataset.get_idx_split()
train_idx = split_idx['train'].to(device)
Device: cuda
GCN Model
아래 그림의 구조를 따르는 GCN model을 구현해보자.
코드 주석에 적힌 instruction을 보면,
- init
- torch.nn.ModuleList를 이용하여 self.convs와 self.bns를 구현한다.
- activation function은 log-softmax를 이용한다.
- forward
- 위 그림 구조대로 그래프를 구현한다
- dropout의 파라미터로 self.training을 포함한다
- return_emb가 True라면, log-softmax를 생략하고 리턴한다.
class GCN(torch.nn.Module):
def __init__(self, input_dim, hidden_dim, output_dim, num_layers,
dropout, return_embeds=False):
# TODO: Implement a function that initializes self.convs,
# self.bns, and self.softmax.
super(GCN, self).__init__()
# A list of GCNConv layers
self.convs = None
# A list of 1D batch normalization layers
self.bns = None
# The log softmax layer
self.softmax = None
############# Your code here ############
## Note:
## 1. You should use torch.nn.ModuleList for self.convs and self.bns
## 2. self.convs has num_layers GCNConv layers
## 3. self.bns has num_layers - 1 BatchNorm1d layers
## 4. You should use torch.nn.LogSoftmax for self.softmax
## 5. The parameters you can set for GCNConv include 'in_channels' and
## 'out_channels'. For more information please refer to the documentation:
## https://pytorch-geometric.readthedocs.io/en/latest/modules/nn.html#torch_geometric.nn.conv.GCNConv
## 6. The only parameter you need to set for BatchNorm1d is 'num_features'
## For more information please refer to the documentation:
## https://pytorch.org/docs/stable/generated/torch.nn.BatchNorm1d.html
## (~10 lines of code)
self.convs = [GCNConv(input_dim, hidden_dim)]\
+ [GCNConv(hidden_dim, hidden_dim) for _ in range(num_layers - 2)]\
+ [GCNConv(hidden_dim, output_dim)]
self.convs = torch.nn.ModuleList(self.convs)
self.bns = torch.nn.ModuleList([torch.nn.BatchNorm1d(hidden_dim) for _ in range(num_layers - 1)])
self.softmax = torch.nn.LogSoftmax(dim=1)
#########################################
# Probability of an element getting zeroed
self.dropout = dropout
# Skip classification layer and return node embeddings
self.return_embeds = return_embeds
def reset_parameters(self):
for conv in self.convs:
conv.reset_parameters()
for bn in self.bns:
bn.reset_parameters()
def forward(self, x, adj_t):
# TODO: Implement a function that takes the feature tensor x and
# edge_index tensor adj_t and returns the output tensor as
# shown in the figure.
out = None
############# Your code here ############
## Note:
## 1. Construct the network as shown in the figure
## 2. torch.nn.functional.relu and torch.nn.functional.dropout are useful
## For more information please refer to the documentation:
## https://pytorch.org/docs/stable/nn.functional.html
## 3. Don't forget to set F.dropout training to self.training
## 4. If return_embeds is True, then skip the last softmax layer
## (~7 lines of code)
for conv, bn in zip(self.convs[:-1], self.bns):
x = conv(x, adj_t)
x = bn(x)
x = F.relu(x)
x = F.dropout(x, p=self.dropout, training=self.training)
x = self.convs[-1](x, adj_t)
out = x if self.return_embeds else self.softmax(x)
#########################################
return out
def train(model, data, train_idx, optimizer, loss_fn):
# TODO: Implement a function that trains the model by
# using the given optimizer and loss_fn.
model.train()
loss = 0
############# Your code here ############
## Note:
## 1. Zero grad the optimizer
## 2. Feed the data into the model
## 3. Slice the model output and label by train_idx
## 4. Feed the sliced output and label to loss_fn
## (~4 lines of code)
optimizer.zero_grad()
out = model(data.x, data.adj_t)
y_pred, y_true = out[train_idx], data.y[train_idx].squeeze()
loss = loss_fn(y_pred, y_true)
#########################################
loss.backward()
optimizer.step()
return loss.item()
# Test function here
@torch.no_grad()
def test(model, data, split_idx, evaluator, save_model_results=False):
# TODO: Implement a function that tests the model by
# using the given split_idx and evaluator.
model.eval()
# The output of model on all data
out = None
############# Your code here ############
## (~1 line of code)
## Note:
## 1. No index slicing here
out = model(data.x, data.adj_t)
#########################################
y_pred = out.argmax(dim=-1, keepdim=True)
train_acc = evaluator.eval({
'y_true': data.y[split_idx['train']],
'y_pred': y_pred[split_idx['train']],
})['acc']
valid_acc = evaluator.eval({
'y_true': data.y[split_idx['valid']],
'y_pred': y_pred[split_idx['valid']],
})['acc']
test_acc = evaluator.eval({
'y_true': data.y[split_idx['test']],
'y_pred': y_pred[split_idx['test']],
})['acc']
if save_model_results:
print ("Saving Model Predictions")
data = {}
data['y_pred'] = y_pred.view(-1).cpu().detach().numpy()
df = pd.DataFrame(data=data)
# Save locally as csv
df.to_csv('ogbn-arxiv_node.csv', sep=',', index=False)
return train_acc, valid_acc, test_acc
# Please do not change the args
if 'IS_GRADESCOPE_ENV' not in os.environ:
args = {
'device': device,
'num_layers': 3,
'hidden_dim': 256,
'dropout': 0.5,
'lr': 0.01,
'epochs': 100,
}
args
# Please do not change these args
# Training should take <10min using GPU runtime
import copy
if 'IS_GRADESCOPE_ENV' not in os.environ:
# reset the parameters to initial random value
model.reset_parameters()
optimizer = torch.optim.Adam(model.parameters(), lr=args['lr'])
loss_fn = F.nll_loss
best_model = None
best_valid_acc = 0
for epoch in range(1, 1 + args["epochs"]):
loss = train(model, data, train_idx, optimizer, loss_fn)
result = test(model, data, split_idx, evaluator)
train_acc, valid_acc, test_acc = result
if valid_acc > best_valid_acc:
best_valid_acc = valid_acc
best_model = copy.deepcopy(model)
print(f'Epoch: {epoch:02d}, '
f'Loss: {loss:.4f}, '
f'Train: {100 * train_acc:.2f}%, '
f'Valid: {100 * valid_acc:.2f}% '
f'Test: {100 * test_acc:.2f}%')
Epoch: 01, Loss: 4.0002, Train: 24.64%, Valid: 28.32% Test: 25.51%
Epoch: 02, Loss: 2.3358, Train: 27.88%, Valid: 25.51% Test: 30.40%
Epoch: 03, Loss: 1.9505, Train: 31.58%, Valid: 31.26% Test: 34.20%
.
.
.
Epoch: 98, Loss: 0.9150, Train: 73.72%, Valid: 71.79% Test: 71.10%
Epoch: 99, Loss: 0.9133, Train: 73.78%, Valid: 71.51% Test: 70.63%
Epoch: 100, Loss: 0.9114, Train: 73.67%, Valid: 70.93% Test: 69.87%
Question 5: What are your best_model validation and test accuracies?
if 'IS_GRADESCOPE_ENV' not in os.environ:
best_result = test(best_model, data, split_idx, evaluator, save_model_results=True)
train_acc, valid_acc, test_acc = best_result
print(f'Best model: '
f'Train: {100 * train_acc:.2f}%, '
f'Valid: {100 * valid_acc:.2f}% '
f'Test: {100 * test_acc:.2f}%')
Saving Model Predictions
Best model: Train: 72.51%, Valid: 72.36% Test: 71.94%
4) GNN: Graph Property Prediction
Load and preprocess the dataset
from ogb.graphproppred import PygGraphPropPredDataset, Evaluator
from torch_geometric.data import DataLoader
from tqdm.notebook import tqdm
if 'IS_GRADESCOPE_ENV' not in os.environ:
# Load the dataset
dataset = PygGraphPropPredDataset(name='ogbg-molhiv')
device = 'cuda' if torch.cuda.is_available() else 'cpu'
print('Device: {}'.format(device))
split_idx = dataset.get_idx_split()
# Check task type
print('Task type: {}'.format(dataset.task_type))
Device: cuda
Task type: binary classification
# Load the dataset splits into corresponding dataloaders
# We will train the graph classification task on a batch of 32 graphs
# Shuffle the order of graphs for training set
if 'IS_GRADESCOPE_ENV' not in os.environ:
train_loader = DataLoader(dataset[split_idx["train"]], batch_size=32, shuffle=True, num_workers=0)
valid_loader = DataLoader(dataset[split_idx["valid"]], batch_size=32, shuffle=False, num_workers=0)
test_loader = DataLoader(dataset[split_idx["test"]], batch_size=32, shuffle=False, num_workers=0)
if 'IS_GRADESCOPE_ENV' not in os.environ:
# Please do not change the args
args = {
'device': device,
'num_layers': 5,
'hidden_dim': 256,
'dropout': 0.5,
'lr': 0.001,
'epochs': 30,
}
args
from ogb.graphproppred.mol_encoder import AtomEncoder
from torch_geometric.nn import global_add_pool, global_mean_pool
### GCN to predict graph property
class GCN_Graph(torch.nn.Module):
def __init__(self, hidden_dim, output_dim, num_layers, dropout):
super(GCN_Graph, self).__init__()
# Load encoders for Atoms in molecule graphs
self.node_encoder = AtomEncoder(hidden_dim)
# Node embedding model
# Note that the input_dim and output_dim are set to hidden_dim
self.gnn_node = GCN(hidden_dim, hidden_dim,
hidden_dim, num_layers, dropout, return_embeds=True)
self.pool = None
############# Your code here ############
## Note:
## 1. Initialize self.pool as a global mean pooling layer
## For more information please refer to the documentation:
## https://pytorch-geometric.readthedocs.io/en/latest/modules/nn.html#global-pooling-layers
self.pool = global_mean_pool
#########################################
# Output layer
self.linear = torch.nn.Linear(hidden_dim, output_dim)
def reset_parameters(self):
self.gnn_node.reset_parameters()
self.linear.reset_parameters()
def forward(self, batched_data):
# TODO: Implement a function that takes as input a
# mini-batch of graphs (torch_geometric.data.Batch) and
# returns the predicted graph property for each graph.
#
# NOTE: Since we are predicting graph level properties,
# your output will be a tensor with dimension equaling
# the number of graphs in the mini-batch
# Extract important attributes of our mini-batch
x, edge_index, batch = batched_data.x, batched_data.edge_index, batched_data.batch
embed = self.node_encoder(x)
out = None
############# Your code here ############
## Note:
## 1. Construct node embeddings using existing GCN model
## 2. Use the global pooling layer to aggregate features for each individual graph
## For more information please refer to the documentation:
## https://pytorch-geometric.readthedocs.io/en/latest/modules/nn.html#global-pooling-layers
## 3. Use a linear layer to predict each graph's property
## (~3 lines of code)
out = self.gnn_node(embed, edge_index)
out = self.pool(out, batch)
out = self.linear(out)
#########################################
return out
train
- optimizer의 변화도 0으로 하기
- optimzier.zero_grad()
- model에 data 입력
- out = model(batch)
- is_labaled로 마스킹된 데이터의 output과 label을 구하기
- out = out[is_labeled]
- label = batch.y[is_labeled]
- 데이터 타입을 torch.float32로 해야할 것이다.
- label = batch.y[is_labeled].type(torch.float32).do(device)
- output과 label을 손실함수 loss_fn에 넣기
def train(model, device, data_loader, optimizer, loss_fn):
# TODO: Implement a function that trains your model by
# using the given optimizer and loss_fn.
model.train()
loss = 0
for step, batch in enumerate(tqdm(data_loader, desc="Iteration")):
batch = batch.to(device)
if batch.x.shape[0] == 1 or batch.batch[-1] == 0:
pass
else:
## ignore nan targets (unlabeled) when computing training loss.
is_labeled = batch.y == batch.y
############# Your code here ############
## Note:
## 1. Zero grad the optimizer
## 2. Feed the data into the model
## 3. Use `is_labeled` mask to filter output and labels
## 4. You may need to change the type of label to torch.float32
## 5. Feed the output and label to the loss_fn
## (~3 lines of code)
optimizer.zero_grad()
out = model(batch)
loss = loss_fn(out[is_labeled], batch.y[is_labeled].type(torch.float32).to(device))
#########################################
loss.backward()
optimizer.step()
return loss.item()
# The evaluation function
def eval(model, device, loader, evaluator, save_model_results=False, save_file=None):
model.eval()
y_true = []
y_pred = []
for step, batch in enumerate(tqdm(loader, desc="Iteration")):
batch = batch.to(device)
if batch.x.shape[0] == 1:
pass
else:
with torch.no_grad():
pred = model(batch)
y_true.append(batch.y.view(pred.shape).detach().cpu())
y_pred.append(pred.detach().cpu())
y_true = torch.cat(y_true, dim = 0).numpy()
y_pred = torch.cat(y_pred, dim = 0).numpy()
input_dict = {"y_true": y_true, "y_pred": y_pred}
if save_model_results:
print ("Saving Model Predictions")
# Create a pandas dataframe with a two columns
# y_pred | y_true
data = {}
data['y_pred'] = y_pred.reshape(-1)
data['y_true'] = y_true.reshape(-1)
df = pd.DataFrame(data=data)
# Save to csv
df.to_csv('ogbg-molhiv_graph_' + save_file + '.csv', sep=',', index=False)
return evaluator.eval(input_dict)
if 'IS_GRADESCOPE_ENV' not in os.environ:
model = GCN_Graph(args['hidden_dim'],
dataset.num_tasks, args['num_layers'],
args['dropout']).to(device)
evaluator = Evaluator(name='ogbg-molhiv')
# Please do not change these args
# Training should take <10min using GPU runtime
import copy
if 'IS_GRADESCOPE_ENV' not in os.environ:
model.reset_parameters()
optimizer = torch.optim.Adam(model.parameters(), lr=args['lr'])
loss_fn = torch.nn.BCEWithLogitsLoss()
best_model = None
best_valid_acc = 0

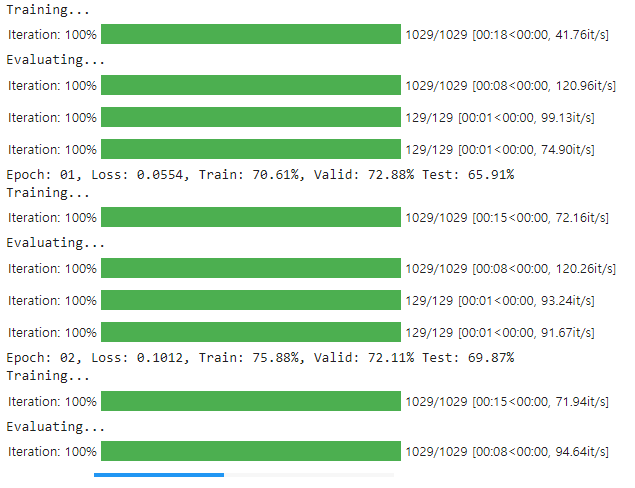

for epoch in range(1, 1 + args["epochs"]):
print('Training...')
loss = train(model, device, train_loader, optimizer, loss_fn)
print('Evaluating...')
train_result = eval(model, device, train_loader, evaluator)
val_result = eval(model, device, valid_loader, evaluator)
test_result = eval(model, device, test_loader, evaluator)
train_acc, valid_acc, test_acc = train_result[dataset.eval_metric], val_result[dataset.eval_metric], test_result[dataset.eval_metric]
if valid_acc > best_valid_acc:
best_valid_acc = valid_acc
best_model = copy.deepcopy(model)
print(f'Epoch: {epoch:02d}, '
f'Loss: {loss:.4f}, '
f'Train: {100 * train_acc:.2f}%, '
f'Valid: {100 * valid_acc:.2f}% '
f'Test: {100 * test_acc:.2f}%')
Question 6: What are your best model validation and test ROC-AUC scores?
if 'IS_GRADESCOPE_ENV' not in os.environ:
train_acc = eval(best_model, device, train_loader, evaluator)[dataset.eval_metric]
valid_acc = eval(best_model, device, valid_loader, evaluator, save_model_results=True, save_file="valid")[dataset.eval_metric]
test_acc = eval(best_model, device, test_loader, evaluator, save_model_results=True, save_file="test")[dataset.eval_metric]
print(f'Best model: '
f'Train: {100 * train_acc:.2f}%, '
f'Valid: {100 * valid_acc:.2f}% '
f'Test: {100 * test_acc:.2f}%')
Question 7 (Optional): Experiment with the two other global pooling layers in Pytorch Geometric.
self.pool 에 gloabl_mean_pool 등을 이용하자.
GCN_graph class의 init 파라미터로 pool이 있으면 더 편할 것 같은데...
728x90
반응형
'스터디 > 인공지능, 딥러닝, 머신러닝' 카테고리의 다른 글
[GCN] Graph Convolutional Network (0) | 2023.04.18 |
---|---|
[논문리뷰] TimesNet, Temporal 2D-Variation Modeling for General Time Series Analysis (0) | 2023.04.08 |
[CS224w] 5. A General Perspective on GNNs (1), 이론편 (0) | 2023.03.11 |
[CS224w] 5. A General Perspective on GNNs (2), 아키텍처 (0) | 2023.03.10 |
[CS224w] 4. Graph Neural Networks (0) | 2023.03.07 |
